The Table Objects: 4.3 Using a Table Object: Editing Cells

TableEditCellTextParams, MSG_TABLE_START_EDIT_CELL_TEXT, MSG_TABLE_DONE_EDIT_CELL_TEXT, MSG_TABLE_STOP_CELL_EDIT

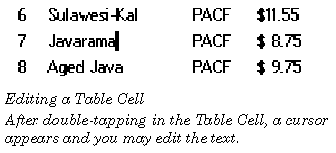

The Table objects make it easy for the user to edit cells. If the column has TCF_DOUBLE_SELECT enabled, a user can edit a cell in the column just by double-clicking on it. When the user does this, the Table object will take the following steps:

First, it sends itself MSG_TABLE_START_EDIT_CELL_TEXT . The default handler causes the Table object to create a VisText under the TableContent which the user can enter text in.
When the user has finished entering the text, and closes the VisText (by pressing ENTER) , the Table object sends itself MSG_TABLE_DONE_EDIT_CELL_TEXT , passing along the text that the user entered in the VisText . The application should store the text wherever it stores the Table 's data.
If the user finishes editing by clicking in another cell, a MSG_TABLE_STOP_CELL_EDIT is generated and the edit is cancelled. (If your program does not wish to cancel the edit under these circumstances, then intercept the message.)
Finally, the Table sends itself a MSG_TABLE_QUERY_DRAW for the cell which was edited. The application should intercept this message and redraw the cell normally.

Both MSG_TABLE_START_EDIT_CELL_TEXT and MSG_TABLE_DONE_EDIT_CELL_TEXT use a special structure, the TableEditCellTextParams structure; the structure's fields have slightly different meanings for each message. This structure has the following definition:

typedef struct {
	TableCellRange			TECT_cells;
	MemHandle			TECT_text;
	word			TECT_length;
} TableEditCellTextParams;

TECT_cells: This is a TableCellRange structure (described on A TableCellRange structure is used to specify a range of cells. It has the following definition:), specifying what cells have been selected for editing. If a single cell has been selected for editing, TCR_start will be the same as TCR_end .
TECT_text: This is the handle of a global memory block, containing the text in the cell.
TECT_length: This is the length of the string in TECT_text , or zero if the string is null-terminated.

MSG_TABLE_START_EDIT_CELL_TEXT creates a VisText object (within the TableContent and over the cell to be edited) to allow the user to edit the cell's text. This message passes a set of TableEditCellTextParams containing the cell range being edited (TECT_cells ) and the initial text to display to the user (if any) in TECT_text and TECT_length . This text object, which may be referenced via TI_textObj , can persist between edits. Thus, if you change its instance data, be aware that these changes may or may not linger in future edits. You may wish to update any changes in your MSG_TABLE_START_EDIT_CELL_TEXT handler.

The default handler clears both TECT_text and TECT_length . Your application may subclass the message, and fill in these fields with default text for the VisText (e.g., you may want to retrieve the text currently in the specified cell and display that to be edited). If TECT_text contains a null handle, the VisText will start out blank.

To provide this default text, allocate a global memory block, copy the string into the beginning of the block, and put the block's handle in TECT_text . (You should not store anything else in this block, because the block will be freed by the handler for MSG_TABLE_DONE_EDIT_CELL_TEXT.) If a valid handle was not passed in TECT_text , it allocates a global memory block for the VisText to write to; otherwise, the VisText will simply write to the block specified in TECT_text (overwriting the original text).

Code Display 5-3 Handling MSG_TABLE_START_EDIT_CELL_TEXT

@method CoffeeTableClass, MSG_TABLE_START_EDIT_CELL_TEXT
{
    char *cellData, *textPtr;
    word cArrayIndex, size;

    cArrayIndex = (params.TECT_cells.TCR_start.TCL_row * TABLE_COLS) +
		params.TECT_cells.TCR_start.TCL_column;

    /* The superclass will free this block that we allocate here. */

    params.TECT_text = MemAlloc(CELL_DATA_LENGTH, HF_SWAPABLE, HAF_LOCK);
    textPtr = MemDeref(params.TECT_text);

    /* Retrieve the current data from the cell and stuff it in the memory block. */

    pself = ObjDerefVis(oself);
    MemLock(OptrToHandle(pself->CTI_chunkArray);

    cellData = ChunkArrayElementToPtr((pself->CTI_chunkArray),
				cArrayIndex, &size);
    strcpy(textPtr, cellData);

    MemUnlock(OptrToHandle(pself->CTI_chunkArray));

    params.TECT_length = 0;				/* Zero indicates null-termination. */

    @callsuper();
}

When the user has finished entering text, the VisText object sends the Table object MSG_TABLE_DONE_EDIT_CELL_TEXT. This message takes one argument, a TableEditCellTextParams structure. The TECT_text field will contain the handle of a global memory block, containing the text the user has entered.The application should intercept the message, so it can store the new text; afterwards, it should call the default handler, which will free the memory block specified by TECT_text and perform other bookkeeping chores. The Table object will automatically send an appropriate MSG_TABLE_QUERY_DRAW , so the cell will be redrawn with the new contents.

Note that the Table object supports allowing the user to edit several cells at once. If you choose to allow this, you must decide what the functionality is; that is, in your handler for MSG_TABLE_START_EDIT_CELL_TEXT, you must decide what cell's text to display in the VisText (e.g. the first cell's text, or a composite of all the selected cells's text); and in your handler for MSG_TABLE_DONE_EDIT_CELL_TEXT, you must decide where and how to store the entered text (e.g. whether to overwrite all the edited cells with the same text, divide the entered text amongst the cells, etc.).

Code Display 5-4 Handling MSG_TABLE_DONE_EDIT_CELL_TEXT

@method CoffeeTableClass, MSG_TABLE_DONE_EDIT_CELL_TEXT
{
    char *cellData, *textPtr;
    word cArrayIndex, size;

    cArrayIndex = (params.TECT_cells.TCR_start.TCL_row * TABLE_COLS) +
		params.TECT_cells.TCR_start.TCL_column;

    textPtr = MemLock(params.TECT_text);

    /* Make sure we're null terminated ... */

    textPtr[CELL_DATA_LENGTH -1]; = (char)0;

    /* Lock down the cell and copy the string to it. */

    MemLock(OptrToHandle(pself->CTI_chunkArray));

    cellData = ChunkArrayElementToPtr((pself->CTI_chunkArray),
		cArrayIndex, &size);

    strcpy(cellData, textPtr);
    MemUnlock(OptrToHandle(pself->CTI_chunkArray));

    @callsuper();
}

MSG_TABLE_START_EDIT_CELL_TEXT

void	MSG_TABLE_START_EDIT_CELL_TEXT(
        TableEditCellTextParams			params);

The Table object sends itself this message when the user starts editing a cell. The default handler brings up a VisText for the user to enter text. You should intercept this message, so you can look up and provide the cell's current contents; that way, the contents will be put in the VisText for the user to edit.

Source: Any Table object.

Destination: The Table sends this message to itself.

Parameters: params. TECT_cells This field specifies the cell or cells the user is editing.

params. TECT_text: This field contains the handle of a global memory block, containing the text to be displayed in the VisText when it is brought up. When this message is sent, params. TECT_text contains a null handle; your subclass's handler may allocate a global memory block, copy the text into that block, and write the handle here. (Note that the VisText will write to the block you specify, so it should not contain any other data.)
params. TECT_length: This is the length (in bytes) of the string in the block specified by params. TECT_text . If this field is zero, the string is null-terminated.

Return: Nothing. (If params. TECT_text contained a null handle, the default handler will allocate a block.)

Structures: TableEditCellTextParams (see Both MSG_TABLE_START_EDIT_CELL_TEXT and MSG_TABLE_DONE_EDIT_CELL_TEXT use a special structure, the TableEditCellTextParams structure; the structure's fields have slightly different meanings for each message. This structure has the following defi).

Interception: You should intercept this message to provide the text for the VisText to present for editing (which will usually be the current contents of the cell being edited). After this, you should call the default handler with @callsuper , so the VisText can be created.

Warnings: If you put a memory handle in params. TECT_text , that block will be written to by the VisText , and freed by the handler for MSG_TABLE_DONE_EDIT_CELL_TEXT; so make sure it doesn't contain any other data.

MSG_TABLE_DONE_EDIT_CELL_TEXT

void	MSG_TABLE_DONE_EDIT_CELL_TEXT(
        TableEditCellTextParams				params);

The VisText object sends this message to the Table object after the user has finished entering data. The application should intercept this message to copy data into its storage location; you should also make sure to call the default handler, which will remove the VisText and perform other bookkeeping chores.

Source: This message is sent by a VisText object used by the Table for text editing.

Destination: The VisText sends this message to its parent Table .

Parameters: params. TECT_cells This field specifies the cell or cells the user has edited.

params. TECT_text: This field contains the handle of a global memory block, containing the text the user entered in the VisText . The default handler will free this block.
params. TECT_length: This is the length (in bytes) of the string in the block specified by params. TECT_text . If this field is zero, the string is null-terminated.

Return: Nothing. (The default handler will free the block specified by params. TECT_text .)

Interception: You should intercept this message, so you can copy the new data into your application's storage. Afterwards, you should make sure to call the default handler with @callsuper .

MSG_TABLE_STOP_EDIT_CELL_TEXT

void	MSG_TABLE_STOP_EDIT_CELL_TEXT();

The VisText object sends this message to the Table if the user clicks outside the cell while editing data. This cancels the edit: the Table returns to its normal mode and the user's edits are discarded.

Source: This message is sent by a VisText object used by the Table for text editing.

Destination: The VisText sends this message to its parent Table .

Parameters: None.

Return: Nothing.

Interception: If your program wants to treat a tap outside the edited cell as a signal that the edit is finished, not cancelled, then get the (abandoned) text that the user was editing from the VisText child of the Table. The chunk handle of this VisText child is stored in TI_textObj. You can build an optr to the VisText by using:

textObj = ConstructOptr(OptrToHandle(@YourTable),

                            pself->TI_textObj);

To retrieve the text, use:

@call textObj::MSG_VIS_TEXT_GET_ALL_PTR(buffer);

where "buffer" has been declared as "char buffer[]".

Once you've retrieved the text, the remainder of your method should just save away this data in whatever data structure you've built to hold your table's data -- just like in the method for MSG_TABLE_DONE_EDIT_CELL_TEXT .
